Type 'G' or Carolina Trade Gun Kit

 circa 1760

This is a typical mid 18th century trade gun with a more slender wrist and serpent sideplate. The stock profile was taken from the Bumford trade gun but the butt was widened slightly to fit the typical Type G buttplate. All of the brass parts were patterned after ones dug up here in Virginia.

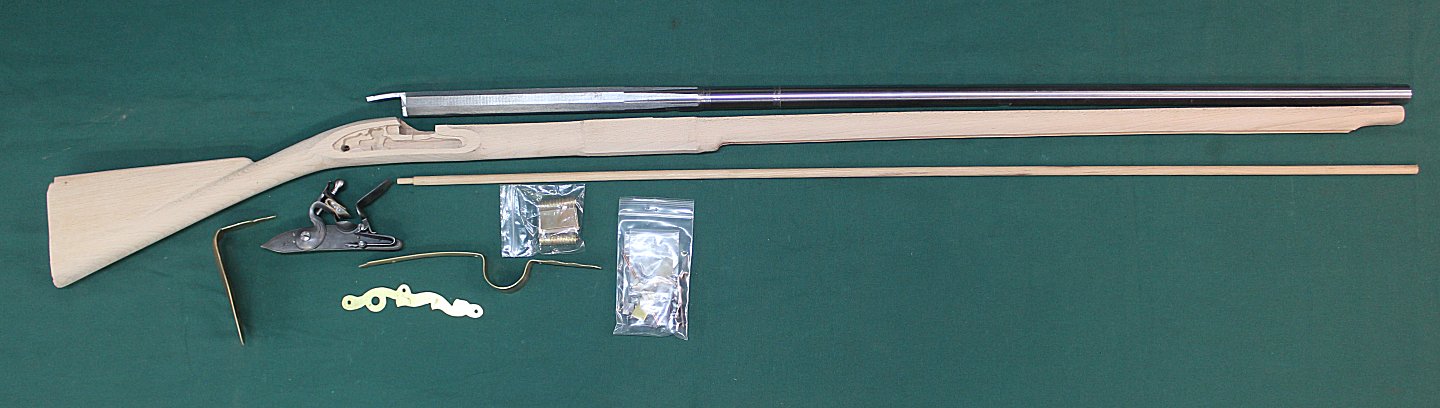

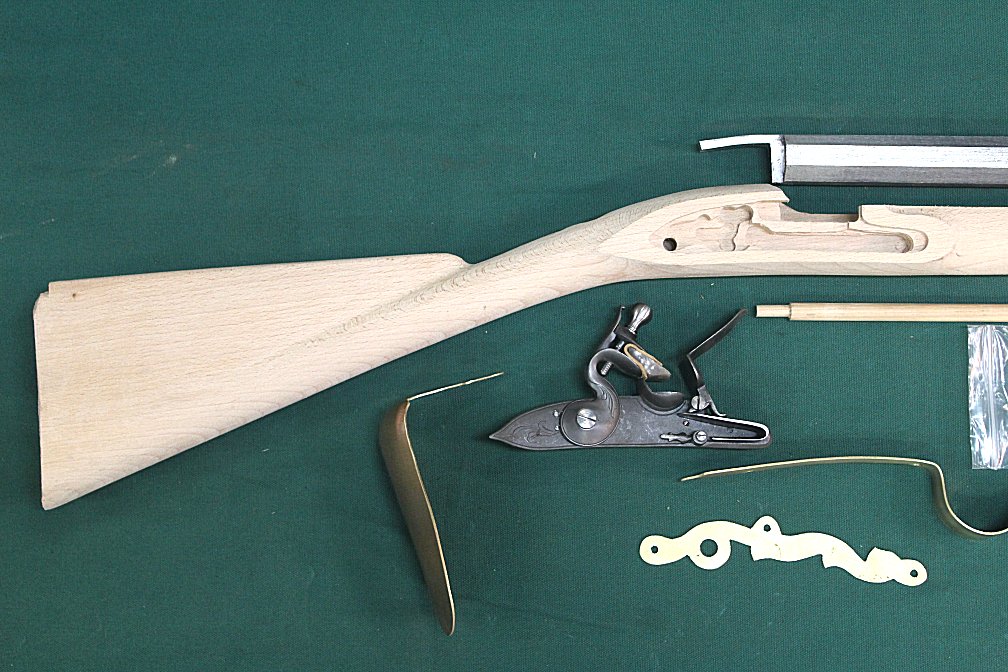

All parts needed to complete the assembly are included. The wrist inlay is included but not inlet.



Only available with a plain maple stock. These look great painted in blue or red.

There are some finished examples on the Trade Gun page.



The lock is the Chamber's Virginia round faced lock and the barrels are by Rice.

Available in 20, or 24 gauge smoothbore. Barrel lengths up to 47". (Call or email me if you want a barrel shorter than 47".)





Breech plug is installed.





$1595









Solder on the tennons and front sight for you - add $50





Click on image for larger view

Current kits will come with Chamber's Virginia Lock

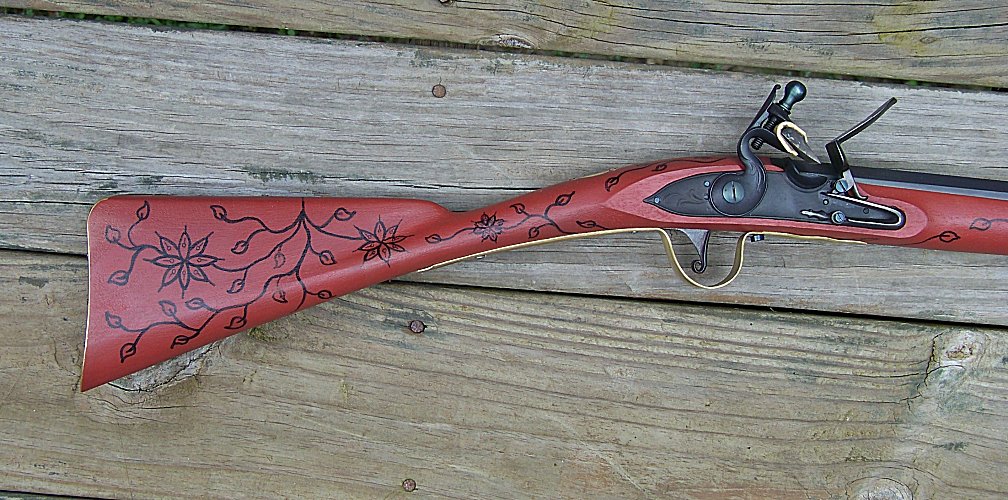

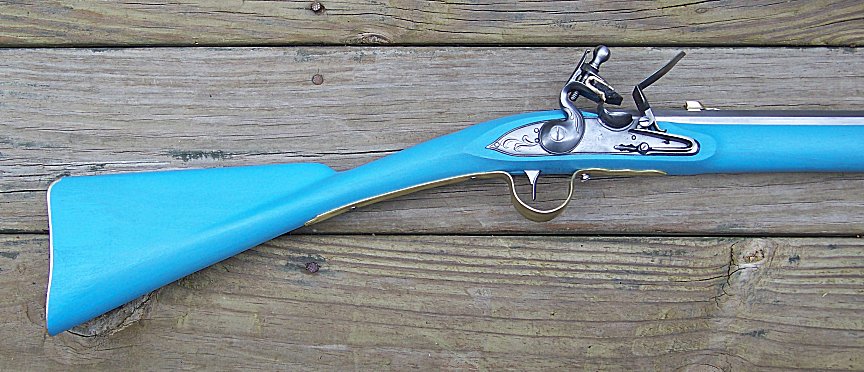

Some finished Examples of Type G guns made from the kit.
